Accessories
Accessories & rigging
Brackets, side tubes and the touring frame.
U-brackets for every column, side rigging tubes and the SQ-90/SS-1 touring rigging frame. The rigging hardware is manufactured for EDC by specialist suppliers, who publish the load ratings.

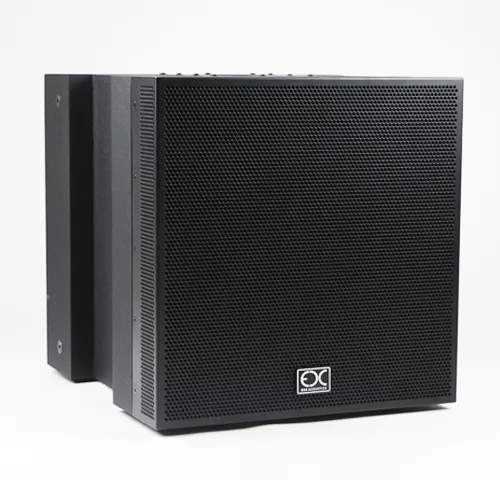

- Tour rigging for SQ-90 / SS-1 — side rigging tube and array frame — US$900
- Side tubes (pair) for SQ-90 and SS-1 — US$330
- CS-30 UB U-bracket for SC-30 — US$228
- CS-60 UB U-bracket for SC-60 and SC-30SL — US$276
- CS-90 UB U-bracket for SC-90 and SC-60SL — US$336
Specifications
Accessories & rigging at a glance
Values from the current EDC datasheet, with EDC's September 2026 confirmations applied. Notes explain anything a downloadable document states differently.
| Touring | |
| Tour rigging SQ-90 / SS-1 | Touring side rigging tube and array frame · US$900ATM Flyware; one set needed per array. |
|---|---|
| Side tubes (pair) | For SQ-90 and SS-1 · US$330 |
| U-brackets | |
| CS-30 UB | SC-30 mounting U-bracket · US$228 |
| CS-60 UB | SC-60 and SC-30SL mounting U-bracket · US$276 |
| CS-90 UB | SC-90 and SC-60SL mounting U-bracket · US$336 |
| Ratings | |
| Working load limit | Stated by the hardware manufacturerwe do not manufacture the rigging hardware. Ask us or your distributor for the maker's rating and certificate for the item you are specifying. |
Every S-Series column mounts vertically or horizontally on its U-bracket, and the square-format cabinets fly from side rigging tubes or the touring frame. Single-hang, multiple-hang and two-cabinet cluster drawings for the SQ-90 and SS-1 are in the downloads below.
Structural engineers need more than drawings: the working load limit, the safety factor and the standard each item was tested to. We do not manufacture this hardware — the brackets, tubes and touring frame are made by specialist rigging suppliers, and the ratings and the standard met are stated in the maker’s own documentation. Ask us or your distributor for the certificate covering the item you are specifying, and design the attachment to the building to that figure.
Downloads
Documents for the Accessories & rigging
- 3d-pdf 3D PDF model — Wedge (SQ-90 / SS-3 tilt frame) 4.8 MB
- rigging SQ-90 / SS-1 two-cabinet cluster 2024-04 · 1.4 MB
- rigging Column series mounting points 2024-04 · 674 KB
- rigging Column series U-brackets 2024-04 · 504 KB
- rigging SQ-90 / SS-1 multiple hang 2024-04 · 210 KB
- rigging SQ-90 / SS-1 single hang 2024-04 · 638 KB
- rigging SC-30SL slim hanging points and dimensions 2025-01
- rigging Slimline column series U-brackets 2024-04 · 481 KB
- rigging SQ-90 / SS-1 / SS-3 / wedge / slimline rigging points 2024-04 · 210 KB
- cad STEP model — SC-30SL mounting bracket 2026-09 · 63 KB
- cad STEP model — SC-60SL mounting bracket 2026-09 · 75 KB
- cad STEP model — SC-90SL mounting bracket 2026-09 · 92 KB
- warranty Limited product warranty (September 2026) 2026-09 · 2026-09 · 166 KB
