Subwoofers

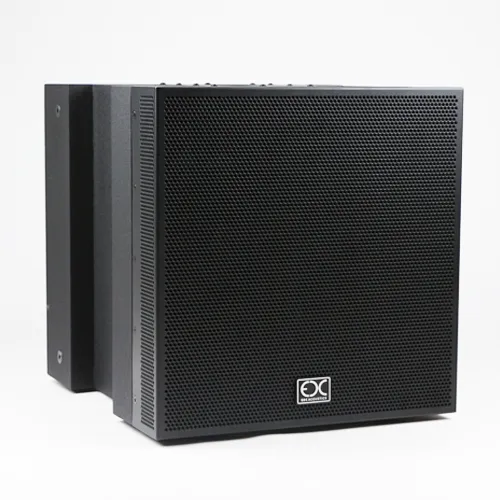

SS-1
Steerable 12-inch subwoofer matching the SQ-90 footprint.
A single 12-inch driver on a 1,200 W amplifier in the same 425 mm square cabinet as the SQ-90, with two steerable low-frequency beams so subwoofers are aimed like the full-range cabinets above them.
US list price
$7,950
US list price. Project and regional pricing through distributors.
- Same cabinet footprint and rigging as the SQ-90 — stacks and flies as one array
- Two independently controlled low-frequency beams
- 25 Hz – 125 Hz, 125 dB at 10 m (long-term peak, dB Leq linear)
Specifications
SS-1 at a glance
Values from the current EDC datasheet, with EDC's September 2026 confirmations applied. Notes explain anything a downloadable document states differently.
| Acoustic | |
| Frequency range | 25 Hz – 125 Hz |
|---|---|
| SPL | 125 dB at 10 m (1 element), configuration dependentLong-term peak, dB Leq (linear). See the measurement note on the range page. |
| Beams | 2, independently controlled |
| Transducers & amplification | |
| Driver | 1 × 12" |
| Amplification | 1 × 1,200 W |
| DSP channels | 1 |
| Connectivity | |
| Audio | 1 × XLR3 line in, 1 × XLR3 line out; optional AES3 stereo or RJ45 Dante input |
| Network audio | 2 channels over Dante or AES67, assignable to either low-frequency beam |
| Control | RJ45 Ethernet 10/100 — a separate port from Dante by default |
| Power | |
| Mains draw | 620 VA, powerCON TRUE1, 110 – 255 V AC |
| Physical | |
| Dimensions (W × H × D) | 425 × 430 × 485 mm |
| Weight | 25 kgThe older web page stated 20 kg. |
| Construction | ½" birch plywood |
| Rigging | 16 × M10 and pole socket; side rigging tubes |
| Environment | |
| Enclosure protection | IP55 standard; IP65 with the weatherised optionour own rating; the enclosure is not third-party tested to IEC 60529. |
| Operating temperature | −20 °C to +50 °C |
The SS-1 is a compact, high-powered subwoofer designed to deliver tight, accurate bass beneath one or two SQ-90s. Because its cabinet shares the SQ-90’s footprint and rigging, a column of SS-1 and SQ-90 flies as a single array from the touring frame, and its two steerable low-frequency beams follow the same coverage logic as the full-range cabinets.
Downloads
Documents for the SS-1
- 3d-pdf 3D PDF model — SS-1 5.7 MB
- ae-spec Architects & Engineers specifications (v1, superseded) v1 · 2024-06 · 80 KB
- ae-spec Architects & Engineers specifications (v2) — editable Word document v2 · 2026-09 · 51 KB
- ae-spec Architects & Engineers specifications (v2) — PDF v2 · 2026-09 · 96 KB
- cad Revit families and DWG — our position we do not publish native Revit families or DWG. The STEP solids are the manufacturer's own models and import directly into Revit, Inventor, SolidWorks, Rhino and AutoCAD, which covers most coordination work. If a project needs a Revit family or a DWG for a specific model, ask us and it will be produced for that project rather than guessed at from a generic block.
- compliance Voice-alarm and conformity position — our position A monitored version of every model is built for EN 60849 voice-alarm systems, but the loudspeakers are not separately certified — voice-alarm approval is granted to the installed system, not to a component, so there is no product certificate to publish. Bring the certifying body in at design stage and we will supply the technical data the system certification needs.
- datasheet Sub series specifications — SS-1, SS-3 (January 2025) 2025-01 · 2025-01 · 742 KB
- datasheet Sub series specifications (v5, superseded) v5 · 2024-10 · 780 KB
- gll EASE data — exported per configuration from the EDC Pro app — our position We do not publish a fixed GLL library. A software-defined cabinet has an effectively unlimited number of dispersion patterns, so a handful of pre-baked ones would not describe the system you are designing. Design the coverage in the Pro app and export 3D balloon data per beam and per array for EASE. Ask us if you need an export before you have the app.
- manual EDC Speakers Network API — control protocol specification 2019-12 · 2019-12 · 336 KB
- rigging SQ-90 / SS-1 two-cabinet cluster 2024-04 · 1.4 MB
- rigging SQ-90 / SS-1 multiple hang 2024-04 · 210 KB
- rigging SQ-90 / SS-1 single hang 2024-04 · 638 KB
- rigging SQ-90 / SS-1 / SS-3 / wedge / slimline rigging points 2024-04 · 210 KB
- cad STEP model — SS-1 2026-09 · 3.4 MB
- warranty Limited product warranty (September 2026) 2026-09 · 2026-09 · 166 KB
Questions about the S-Series
What is the frequency range?
The SC columns are rated 100 Hz to 20 kHz (±3 dB), and the SQ-90 and the slim SC-30SL, SC-60SL and SC-90SL 80 Hz to 20 kHz. The SS-1 and SS-3 subwoofers extend the system to 25 Hz. Datasheets are on each product page.
How loud are they?
Published figures are 95 dB (SC-30), 101 dB (SC-60) and 104 dB (SC-90) at 10 metres for a single cabinet, and 106 dB at 16 metres for the SQ-90, configuration dependent; cabinets cluster horizontally and vertically to form larger arrays that behave as a single source. The figures are long-term peak, dB Leq (linear), and are crest-factor independent because they are peak values. We do not publish the convergent 1-metre maximum the industry usually quotes: converging ninety drivers into a single beam would give roughly 150 dB at 1 metre, which is not a condition these loudspeakers are ever operated in and tells a designer nothing about real coverage.
Can they be used outdoors?
Yes. Standard cabinets are rated IP55. A weatherised version of every model is available and is rated IP65, with stainless-steel and aluminium hardware, a waterproof grille lining and IP65 network and power connectors. All models operate from −20 °C to +50 °C. These are our own ratings — the enclosures are not third-party tested to IEC 60529, so if a project requires a certified rating, raise it at specification stage.
Do they take Dante or AES3 digital audio?
Every model has an analogue XLR line input and output as standard, with an optional AES3 stereo input or an RJ45 Dante input. Two channels are carried over Dante or AES67, and either can be assigned to any of the four beams. Control is on a separate network port by default; if a project needs control and Dante on a single RJ45, ask us. See the Dante and AES67 page.
How are they mounted?
Columns carry eight M10 points and can be mounted vertically or horizontally with the U-brackets; subwoofers carry sixteen M10 points and a pole socket; the SQ-90 uses side and rear rigging tubes and the touring rigging frame. Rigging drawings are in Resources. We do not manufacture the rigging hardware — the brackets, tubes and touring frame are made by specialist suppliers, and the working load limits and the standard met come from the maker's documentation. Ask us or your distributor for the certificate covering the item you are specifying.
Can the system report faults?
A monitored version reports transducer, thermal and amplifier faults over the network, and the cabinets carry an inbuilt measurement microphone. This is the version specified for transport and voice-alarm applications. The telemetry interface is not yet documented for third-party systems — see the developer pages for what is and is not specified.
